详细说明

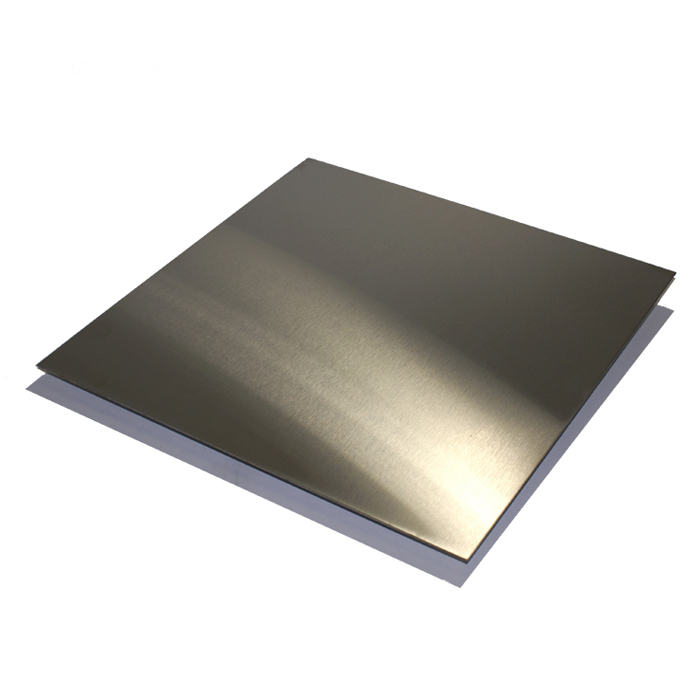

304不锈钢带、板/ Stainless steel decorative plate

SUS参数/Sus Parameters:

SUS不锈钢表面拉丝处理是通过研磨产品在工件表面形成线纹，起到装饰效果的一种表面处理手段。由于表面拉丝处理能够体现金属材料的质感，所以得到了越来越多用户的喜爱和越来越广泛的应用。拉丝处理通常根据表面效果不同分为直丝和乱丝。直丝又叫做发丝纹、乱丝又叫作雪花纹。
拉丝：分干拉丝和油磨拉丝。拉丝分80#，120#，180#，240#，320#，400#等拉丝型。我们装饰行业通常用到的是240#--400#之间的。数值越大，条纹越细。 板材在生产过程中采用专用抛光油作介质，经高速研磨而成。产品表面呈连续丝纹状，表面光洁、纹理清晰、质感柔和。

Sus Stainless steel surface drawing treatment is a kind of surface treatment method which forms lines on the surface of the workpiece by grinding products and plays a decorative effect. Because the surface drawing treatment can reflect the texture of metal materials, it has been more and more popular and widely used by more and more users.

Wire drawing is usually divided into straight wire and disordered wire according to different surface effects. Straight silk is also called hairline pattern, and disordered silk is also called snow pattern.Wire drawing: dry drawing and oil mill drawing. There are 80, 120, 180, 240, 320 and 400 drawing types. Our decoration industry is usually used between 240 mm and 400 mm. The larger the value, the thinner the fringe. In the production process, the special polishing oil is used as the medium, which is ground by high speed. The surface of the product is in the shape of continuous silk, with smooth surface, clear texture and soft texture.

优势/ Advantages:

拉丝处理可使金属表面获得非镜面般金属光泽，就像丝绸缎面般具有非常强的装饰效果，犹如给了普通金属予新的生机和生命，所以拉丝处理具有越来越多的市场认可和广泛应用。

Advantages: wire drawing treatment can make metal surface get non mirror like metallic luster, like silk satin has a very strong decorative effect, as if to give ordinary metal new life and life, so drawing treatment has more and more market recognition and wide application.

应用/ Application:

1、 建筑、电梯装潢应用。2、家用电器、厨具应用。3、工业、医疗器械应用。

1. Building, elevator decoration application.

2. Application of household appliances and kitchenware.

3. Industrial and medical device applications.

1、厚度：0.4 -3.0mm
2、一般尺寸：1000mm*2000mm、1219mm*2438mm
3、定制尺寸： 长度：500mm-5000mm 宽度：100mm-1500mm
4、精度：长度、宽度±0.5mm 对角线公差≤0.5mm

1. Thickness: 0.4 - 3.0mm

2. General dimensions: 1000mm * 2000mm, 1219mm * 2438mm

3. Custom size: length: 500mm-5000mm width: 100mm-1500mm

4. Accuracy: length and width ± 0.5mm, diagonal tolerance ≤ 0.5mm

材质可?。?/span>SUS04. SUS316. SUS430. TTS443M等.

Materials: SUS304, SUS316, SUS430, tts443m, etc.

镀色可?。?/span>黄钛、黑钛、玫瑰金、古铜、宝蓝色.

Plating color: Yellow titanium, black titanium, rose gold, bronze, precious blue

产品工艺：拉丝+开平+贴膜.

Product process: wire drawing + open flat + film

产品用途/ Case study:

广泛用于建筑行业有电梯门板，自动扶梯装饰板；在建筑五金行业中龙头、合页、把手、锁具饰板、化工设备、食品机械、船舶军工等；橱具如抽油烟机、不锈钢灶具、水槽、医用家具、保险设备、卫生洁具等。 在3C数码产品方面，如笔记本电脑的面板，键盘板等，手机的面板，LCD框面，电池盖板，摄像头的?；せ?，数码相机镜头滑盖板等电子工程。

In the construction industry, there are elevator door panels, escalator decorative panels; in the construction hardware industry, the faucet, hinge, handle, lock decorative plate, etc.; kitchen utensils such as range hood, stainless steel stove, sink and so on. In terms of 3C digital products, such as laptop panel, keyboard board, mobile phone panel, LCD frame, battery cover, camera protection slide cover, digital camera lens slide cover, etc.

案例图/Case diagram

生产零部件展示：
