不锈钢液体货集装箱

详细说明

不锈钢液体货集装箱/ Sius Railway container

参数/ Parameters:

用的最多是一吨箱，还有5吨箱 10吨箱，化学工业有相应的标准

一吨箱: 外形尺寸：900X1300X1300mm(lxbxh)

内部尺寸：785X1220X1150mm

内容积：1.093m3

五吨箱：外形尺寸：1968X2438X2438mm(lxbxh)

内部尺寸：1823X2348X2200mm

内容积：9.4CU.M

10吨箱：外形尺寸：3029X2438X2591mm(lxbxh)

内部尺寸：2868X232353X2389mm

内容积：18CU.M

The most commonly used railway containers are one ton containers, and there are 5 ton containers and 10 ton containers. The Ministry of Railways has corresponding standards, but it is difficult to find detailed information on the market.

Overall dimension of one ton container: 900x1300x1300mm (lxbxh)

Internal dimension: 785x1220x115mm

Internal volume: 1.093 M3

Five ton container: overall dimension: 1968x2438x2438mm (lxbxh)

Internal dimension: 1823x2348x2200 mm

Internal volume: 9.4cu. M

10 ton container: overall dimension: 3029x2438x2591mm (lxbxh)

Internal dimension: 2868x2353x2389mm

Internal volume: 18cu. M

1、按所装货物种类

分为干货集装箱、散货集装箱、液体货集装箱、冷藏箱集装箱，以及一些特种专用集装箱，如汽车集装箱、牧畜集装箱、兽皮集装箱等。

2、按制造材料

可分成三种：有钢制装箱、铝合金集装箱、玻璃钢集装箱。制造材料是指集装箱主体部件（侧壁、端壁、箱顶等）材料。

3、按结构

可分为三类，有固定式集装箱、折叠式集装箱、薄壳式集装箱。在固定式集装箱中还可分密闭集装箱、开顶集装箱、板架集装箱等。

4、按用途

可分为冷冻集装箱、挂衣集装箱、开顶集装箱、框架集装箱、罐式集装箱、冷藏集装箱、平台集装箱、通风集装箱和保温集装箱。

1. By type of cargo

It is divided into dry containers, bulk containers, liquid containers, refrigerated containers, and some special containers, such as automobile containers, livestock containers, animal skin containers, etc.

2. By material of manufacture

It can be divided into three types: steel container, aluminum alloy container and FRP container. Manufacturing materials refer to the materials of the main parts of the container (side wall, end wall, top, etc.).

3. By structure

It can be divided into three types: fixed container, folding container and thin shell container. In the fixed container, it can also be divided into closed container, open top container, Grillage container and so on.

4. By purpose

It can be divided into frozen container, garment container, open top container, frame container, tank container, refrigerated container, platform container, ventilated container and insulated container.

产品用途/ Case study:

1、开顶集装箱：用于装载玻璃板，钢制品，机械等重货，可以使用起重机从顶部装卸，开顶箱顶部可开启或无固定项面的集装箱。

2、框架集装箱：用于长大、超重、轻泡货物。

3、罐装集装箱：用于液体货物。

4、平台集装箱：用于装运超限货物，有一个强度很大的底盘，在装运大件货物时，可同时使用几个平台集装箱。

5、冷冻集装箱：用于运输黄油、巧克力、冷冻鱼肉、炼乳、人造奶油等物品。

6、框架集装箱：用于超重货物，装载牲畜，以及诸如钢材之类可以免除外包装的裸装货。

1. Open top container: it is used to load heavy goods such as Du glass plate, steel products, machinery, etc. it can be loaded and unloaded from the top with crane, and the top of open top container can be opened or without fixed surface.

2. Frame container: used for long, heavy and light goods.

3. Canned container: used for liquid cargo.

4. Platform container: it is used to transport out of gauge goods. It has a strong chassis. When loading large goods, several platform containers can be used at the same time.

5. Frozen container: used to transport butter, chocolate, frozen fish, condensed milk, margarine and other items.

6. Frame container: used for overweight goods, loading livestock, and bare goods, such as steel, which can be exempted from outer packaging.

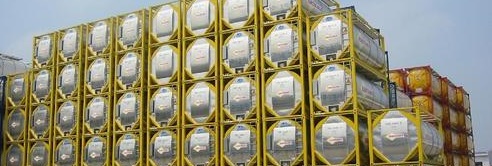

案例图/Case diagram
