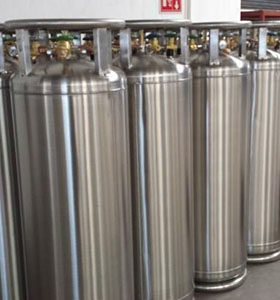

SUS不锈钢工业瓶体/ Stainless steel industrial logistics tank

SUS不锈钢工业瓶是灌装工业气体的钢瓶的统称，属于压力容器（一般在灌满气体的钢瓶内压在shu150个大气压以下），因涉及到生产安全，所以国家每隔一定时间要做强制检查。灌装的工业气体品种有氧气、氮气、氢气、氩气、二氧化碳、二氧化硫、氟化氢、液氨、液氯、乙炔等，并且瓶身上用不同颜色和标识加以区分。瓶就是存放工业气体的钢瓶的总称。钢瓶(gāng píng) 贮存高压氧气、煤气、石油液化气等的钢制瓶。钢瓶的安全储存和运输 气体钢瓶一般盛装永久气体、液化气体或混合气体。气体钢瓶瓶充装单位、气体钢瓶检验单位、气体钢瓶使用单 (包括工厂、实验室、医院、学校、疾控中心、电子室、洁净室、工业机构等)、瓶装气体和 气体钢瓶经销单位的气瓶管理急需提高，应加强对运输、储存气体钢瓶瓶的安全管理。

Chemical industry logistics bottle is the general name of the steel cylinder filled with industrial gas, which belongs to the pressure vessel (generally, the pressure in the steel cylinder filled with gas is below 150 atmospheres). Due to the production safety, the state has to do compulsory inspection every certain time. The types of industrial gases are oxygen, nitrogen, hydrogen, argon, carbon dioxide, sulfur dioxide, hydrogen fluoride, liquid ammonia, liquid chlorine, acetylene, etc., and the bottles are distinguished by different colors and marks. Cylinder is the general name of the steel cylinder for storing industrial gas. Steel cylinder (g ā ng P í ng) is a steel cylinder used to store high pressure oxygen, gas, liquefied petroleum gas, etc. The safe storage and transportation of gas cylinders generally contain permanent gas, liquefied gas or mixed gas. The management of gas cylinder filling units, gas cylinder inspection units, gas cylinder usage list (including factories, laboratories, hospitals, schools, centers for Disease Control and prevention, electronic rooms, clean rooms, industrial institutions, etc.), gas cylinders and gas cylinder distribution units need to be improved. The safety management of gas cylinders for transportation and storage should be strengthened.

工业用标准气瓶容量一般为40L ，额定工作压力为15MPa 。瓶体漆成天蓝色，并漆有“X气”黑色字样。 2、气瓶及其附件的构造 ·气瓶本体 系管状无缝结构，上端瓶口处的缩颈部分为瓶颈，瓶颈与瓶体的过渡部分叫瓶肩，瓶颈外侧固定连接有颈圈。下端一般为凹形底。瓶体由优质锰钢、铬钼钢或其他合金钢制成。最常用的是中容积瓶，外径219mm，容积40L，高度约1.5mm，公称工作压力15Mpa，许用压力18Mpa。 ·主要附件 a、瓶阀 一般由铜材制成，抗燃，且不起静电及机械火花。其密封材料应有好的阻燃及密封性能。 b、瓶帽 ?；て糠馐芸呐觯ü菸朴刖比α?。瓶帽上一般有排气孔或侧孔，以防瓶阀漏气使瓶帽承压。 c、防震圈 套于瓶体上的两个弹性橡胶圈，起减震和?；て刻宓淖饔?。

The capacity of industrial standard gas cylinder is generally 40L, and the rated working pressure is 15MPa. The bottle is painted sky blue with the words "x gas" in black. 2. The necking part at the top of the bottle mouth is the bottle neck, the transition part between the bottle neck and the bottle body is called the bottle shoulder, and the outside of the bottle neck is fixedly connected with a collar. The lower end is generally concave. The bottle body is made of high quality manganese steel, chromium molybdenum steel or other alloy steel. The most commonly used is the medium volume bottle, with an outer diameter of 219mm, a volume of 40L, a height of about 1.5mm, a nominal working pressure of 15MPa and an allowable pressure of 18Mpa. ·The main accessories A and bottle valve are generally made of copper, which are flame-resistant and free from static electricity and mechanical sparks. The sealing material should have good flame retardant and sealing performance. b. The bottle cap protects the bottle valve from collision and is connected with the collar through the thread. Generally, there are vent holes or side holes on the bottle cap to prevent the bottle valve from leaking and making the bottle cap bear pressure. c. Two elastic rubber rings on the bottle body are used for shock absorption and protection.

SUS?不锈钢工业瓶是指用金属薄板制造的薄壁包装器。它广泛应用于食品包装、医药品包装、日用品包装、仪器仪表包装，工业品包装、军火包装等方面;包括工厂、实验室、医院、学校、疾控中心、电子室、洁净室、工业机构等。

Sus Chemical industry logistics bottle body is a thin-walled packer made of sheet metal. It is widely used in food packaging, pharmaceutical packaging, daily necessities packaging, instrument packaging, industrial packaging, arms packaging, etc.; including factories, laboratories, hospitals, schools, centers for disease control, electronic rooms, clean rooms, industrial institutions, etc.
